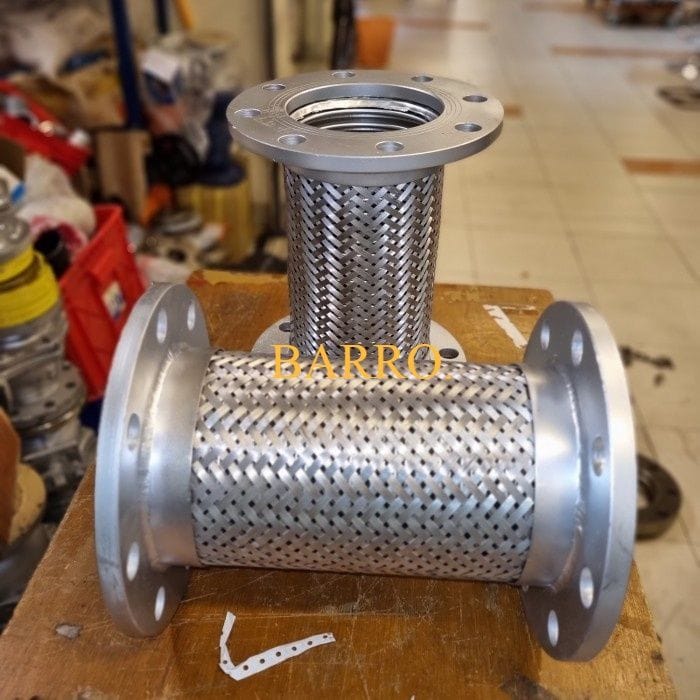

MS Flexible Hose Pipe

Name: MS Flexible Hose Pipe
Brand: JAYANT PIPE AND TUBES
Price: 100.0 INR
Availability: InStock

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

MS Flexible Hose Pipe Specification

Torque
N/A (Not typically torqued, flanges are bolted)

Load Capacity
Depends on working pressure and diameter, up to 25 kg/cm2

Hardness
165 HB (approx.)

Surface Treatment
Galvanized / Anti-rust coated

Feature
Flexible, Leak-proof, Vibration absorption

Grade
MS (Mild Steel)

Tensile Strength
350 MPa (approx.)

Capacity
Up to 20 bar pressure

Finish
Polished

Thread Type
N/A (Flanged, not threaded)

Head Type
Flanged

Standard
IS 1239 / DIN / ASTM A53 Equivalent

Diameter
25 mm to 200 mm

Thickness
2.5 mm to 5 mm

Corrosion Resistant
Yes

Shape
Cylindrical

Fasteners Type
Bolted Flange

Material
Mild Steel (MS)

Tolerance
0.2 mm

Application
Water, Oil, Air, Gas line, Industrial piping

Length
Customizable from 150 mm to 3000 mm

Usage
Suitable for absorbing vibration and thermal expansion

Working Temperature Range
-20C to +150C

End Connections
MS Flanged both ends

Installation Type
Horizontal or Vertical pipeline

Color
Metallic Silver

Outer Braid Material
Stainless Steel 304

Maintenance
Low; periodic inspection required

Burst Pressure
Up to 60 bar

Resistant to Chemicals
Moderate

Inner Tube Material
MS Corrugated Hose

MS Flexible Hose Pipe About

MS Hose Pipe is a robust and flexible industrial hose designed for the efficient transfer of water, air, oil, chemicals, and other fluids in demanding environments. Manufactured using high-quality mild steel with a corrosion-resistant finish, it offers excellent strength, durability, and reliable performance. Available in various diameters, lengths, and pressure ratings, MS hose pipes are suitable for industrial machinery, construction, agriculture, firefighting, mining, and fluid handling systems. Their rugged construction ensures leak-free operation, easy installation, and a long service life even under harsh working conditions.

Superior Flexibility and Vibration Absorption

Engineered with a corrugated MS inner tube and an SS304 outer braid, this hose pipe delivers exceptional flexibility and absorbs vibrations and movement in pipelines. Its robust design reduces stress on connected equipment, prolongs system life, and minimizes downtime due to leaks or failures.

Customizable for Varied Industrial Needs

Offered in lengths from 150 mm up to 3000 mm and varying diameters, this hose can be tailored to your specific installation requirements. Whether for water, oil, air, or gas applications, each hose is finished with bolted MS flanges to ensure compatibility and secure connection with existing piping systems.

Durable, Reliable, and Low Maintenance

Protected with galvanized or anti-rust coatings, the hose resists corrosion and tolerates a wide range of temperatures from -20C to +150C. Its low-maintenance needs-just periodic inspections-make it cost-effective and reliable for both new projects and retrofits.

FAQ's of MS Flexible Hose Pipe:

Q: How is the MS Flexible Hose Pipe installed in pipelines?

A: This hose pipe can be installed in both horizontal and vertical pipelines using its MS flanged ends, which are secured with bolts. Installation requires aligning the flanges with the pipeline flanges and bolting them firmly to ensure a leak-proof connection.

Q: What are the main applications for this hose pipe?

A: The hose is suitable for a range of industrial uses, including water, oil, air, and gas line installations. Its flexibility and vibration absorption also make it ideal for systems requiring thermal expansion management or vibration reduction.

Q: When should the hose be inspected or maintained?

A: While the hose is designed for low maintenance, periodic inspections are recommended to detect signs of wear, leaks, or corrosion. Frequency can vary based on the operating environment, but a regular schedule ensures long service life and reliability.

Q: What are the benefits of the stainless steel 304 outer braid?

A: The SS304 braid enhances the hose's tensile strength and flexibility, protects the mild steel inner tube from mechanical damage, and improves resistance to vibration and moderate chemical exposure.

Q: Where can the hose be customized in size and diameter?

A: The hose can be ordered in various lengths (150 mm to 3000 mm) and diameters (25 mm to 200 mm), allowing customization at the manufacturer or supplier to meet specific installation needs.

Q: What is the process for connecting the hose to existing piping?

A: You simply align the hose's flanged ends with the pipe flanges, insert the correct bolts, and tighten them to secure the connection. This bolted flange method ensures a solid, leak-proof joint without the use of threaded fittings.

Q: What is the advantage of the hose's construction for absorbing vibration?

A: The combination of a corrugated MS inner tube and flexible outer braid allows the hose to efficiently absorb vibration and slight movements, protecting piping systems and connected equipment from stress-related wear and tear.
